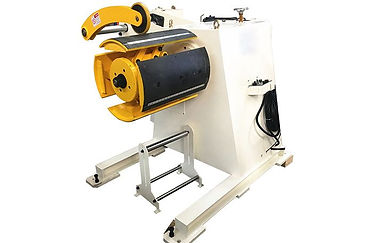

Medium duty hydraulic decoiler is the most common decoiling device in a metal stamping line. It has variable speed control and removable controller for smooth and stable operation.
Applicable Material
-
Coil Stock Width: 20mm – 1200mm
-
Coil Loading Weight: <5ton
-
Metal Strip Thickness: 0.1mm – 3.0mm
-
Material Type: Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Copper, etc.
Performance Speed
-
0-16 m/min (standard)
-
0-30 m/min (option)
Features of HT- Decoiler
Mandrel Expansion & Customization
-
Hydraulic cylinder powers the mandrel expansion with a range of 450mm to 530mm.
-
Custom options available, such as European-standard 400mm coil ID decoiling offered by HE-machine.
Loop Control & Speed Options
-
Equipped with a stand-alone contact sensor rack for loop control.
-
Uses a Delta brand inverter for variable speed control, with speed options of 16m/min or 30m/min.
Brake System & Manual Control
-
Standard brake system: band brake for medium-duty decoilers; optional pneumatic disc brake for heavy-duty models.
-
Features a removable manual controller with buttons, allowing operators to closely monitor and control the decoiling process.
Pneumatic Pressing Arm
-
Features a pneumatic pressing arm with PU wheel to apply pressure on the coil surface.
-
Prevents coil spreading during the decoiling process.
Specification of HT-H Decoiler Straightener Feeder
Model | HT-H-200 | HT-H-300 | HT-H-400 | HT-H-500 | HT-H-600 |
|---|---|---|---|---|---|
Coil Stock Width | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm |
Metal Strip Thickness | 0.1-1.6 mm | 0.1-3.0 mm | 0.1-3.0 mm | 0.1-3.0 mm | 0.1-3.0 mm |
Coil Loading Weight | 1 ton | 2 ton | 3 ton | 3 ton | 5 ton |
Coil I.D. | 508 mm | 508 mm | 508 mm | 508 mm | 508 mm |
Coil O.D. | 1200 mm | 1200 mm | 1200 mm | 1200 mm | 1200 mm |
