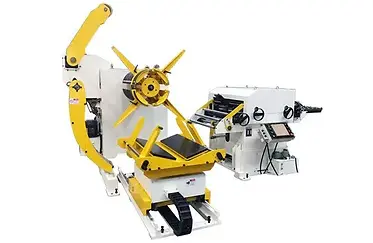

Compact line HTF2 series is a highly integrated controlled coil feeding system. It combines decoiler, straightener, and feeder part. With servo control system and precision rollers, combined worm gear upper roller adjustment, it achieves a high precision performance in safety pressroom automation. It can handle a variety kind of metal material such as cold-rolled steel, hot-rolled steel, galvanized steel, stainless steel, copper, aluminum, etc.
Applicable Material
-
Thickness: 0.3 mm – 3.2 mm
-
Coil Width: 50mm – 400/ 500/ 600/ 800 mm
-
Coil Weight: Max. 3 ton/ Max. 5 ton
-
Yield Strength: ≤245 N/mm²
-
Tensile Strength: ≤392 N/mm²
Performance Speed
-
0-24 m/min
Features of HE HTF2 Decoiler Straightener Feeder
Workspace Saving Coil Line
Different from loop-type coil feeding, compact line HE GLK2 series combined uncoiling, straightening, feeding of coil stock into one single unit. This machine arrangement eliminates a long material loop, which saves valuable plant floor space.
Precision Straightening Performance
HE GLK2 series equips with high-quality GCr15 straightening rollers, with hardness reach HRC 60. Combined precision worm gear upper rolls adjustment, and servo control system, it achieves a high precision straightening performance.
Safety Coil Handling Operation
The decoiler straightener feeder compact system applied the advanced automatic control and self-diagnosis system, which has a maximum protection of the operator’s safety.
Accuracy Coil Feeding
Electronic servo control system with the pneumatic pilot release, the HE GLK2 decoiler straightener feeder has an accuracy feeding of +/- 0.1mm.
Specification of HE HTF2 Decoiler Straightener Feeder
Model | HTF2-400 | HTF2-500 | HTF2-600 | HTF2-800 |
|---|---|---|---|---|
Mandrel Expansion Range | 475-530 mm | 475-530 mm | 475-530 mm | 475-530 mm |
Material Thickness | 0.3-3.2 mm | 0.3-3.2 mm | 0.3-3.2 mm | 0.3-3.2 mm |
Loading Capacity | 3 ton | 3 ton | 5 ton | 5 ton |
Straightening Rollers | Φ48mm * 11pcs | Φ48mm * 11pcs | Φ48mm * 11pcs | Φ68mm * 7pcs |
Feeding Rollers | Φ68mm * 2pcs | Φ68mm * 2pcs | Φ88mm * 2pcs | Φ88mm * 2pcs |
Main Parts of HE HTF2 Decoiler Straightener Feeder
Coil Car (Optional)
-
Wear-resisting loading surface
-
Safety arms to prevent narrow coil falling
-
Hydraulic cylinder drive the coil car lifting
-
Hydraulic motor drive the coil car movement
-
Limit switch and blocks to avoid coil car’s offside
-
Remote manual button control and touch screen control
Decoiler
-
Hydraulic mandrel expansion
-
Variable uncoiling speed control
-
Pneumatic coil hold-down arm for springy materials
-
4pc of “A” type frames locate the coil and avoid coil shuffling
-
Photoelectric loop sensor
Straightener-Feeder
-
11pcs high-quality straightener rollers
-
NSK precision gear driving
-
Bottom gear drive roller transmission
-
Worm gear roller adjustment for precision straightening performance
-
Pneumatic pilot release ensures an accuracy feeding
-
Motorized passline height adjustment for die change
-
Adjustable support bracket for smooth feeding
Advanced Options
-
Customized decoiler expansion range
-
Motorized coil guide adjustment
-
Protective plastic film rewinder
-
Coil threading support swing arm
-
Rubber upper feeding pinch roller
-
Motorized straightening value adjustment
-
Openable straightener upper rollers
-
Double side decoiler straightener feeder machine
