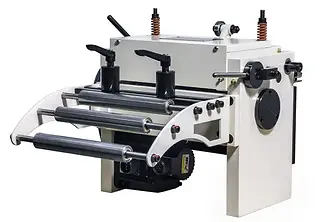

HCF is a type of press feeder driven by servo motor and conducted a mechanical release system.
Applicable Material
-
Steel Thickness: 0.1 mm – 1.6 mm
-
Coil Width: < 400 mm
Performance Speed
-
Max. 30m/min
Features of HCF Servo Roll Feeders
Reliable performance for small length feeding
-
This servo roll feeder conducted a mechanical release system, has a very stable working performance. As the mechanical release is faster than pneumatic release, this servo feeder is ideal for the small feeding length at high-speed stamping.
Safety Operation
-
CE certificated spare parts, meets the European safety standard; Machine corner treatment to prevent injury; World-leading brand air switch, AC contactor, and other electronic devices to protect safety operation.
Advanced Options
-
Rubber-coated roller for sensitive material feeding
-
Higher feeding speed 30m/min
-
Siemens servo system
-
20 segments feeding function
-
Multiple language capability, Russian, Spanish, Polish, etc.
Accuracy and reliable feeding performance
-
Servo motor and servo drive are high torque with low inertia, ensures a reliable coil feeding. With pneumatic release system and precision control, RNC achieves an accuracy feeding of +/- 0.1mm.
Specification of Servo Feeder
Model | HCF-200 | HCF-300 | HCF-400 |
|---|---|---|---|
Coil Width | 200 mm | 300 mm | 400 mm |
Material Thickness | 0.1-1.6 mm | 0.1-1.6 mm | 0.1-1.6 mm |
Feeding Speed | 24m/min | 24m/min | 24m/min |
Roller Dia | ∅90 mm | ∅90 mm | ∅90 mm |
Servo System | Yaskawa | Yaskawa | Yaskawa |
